CSCQ2025中空玻璃外合充氣生產線
玻璃合片時平壓機前后箱機械手杠桿式托料,(機械式硬限位+活動板吸盤吸附)確保自動合片時玻璃永不錯位。清洗箱 風干箱 風刀等全不銹鋼制作,外形美觀大方,永不銹蝕。
設備詳情

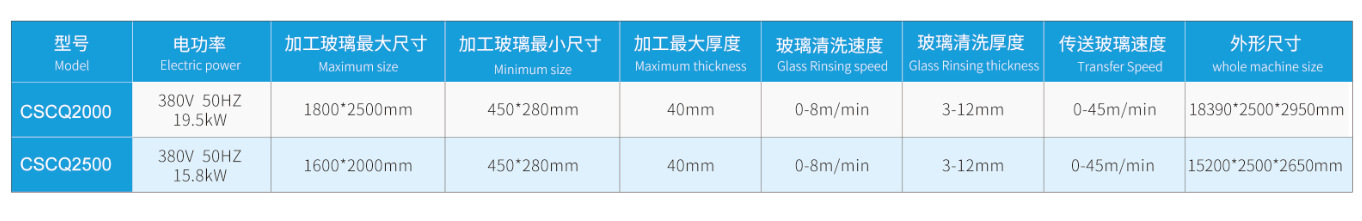

技術參數
設備特點
智能充氣可根據客戶需要的濃度調節,可達到客戶要求

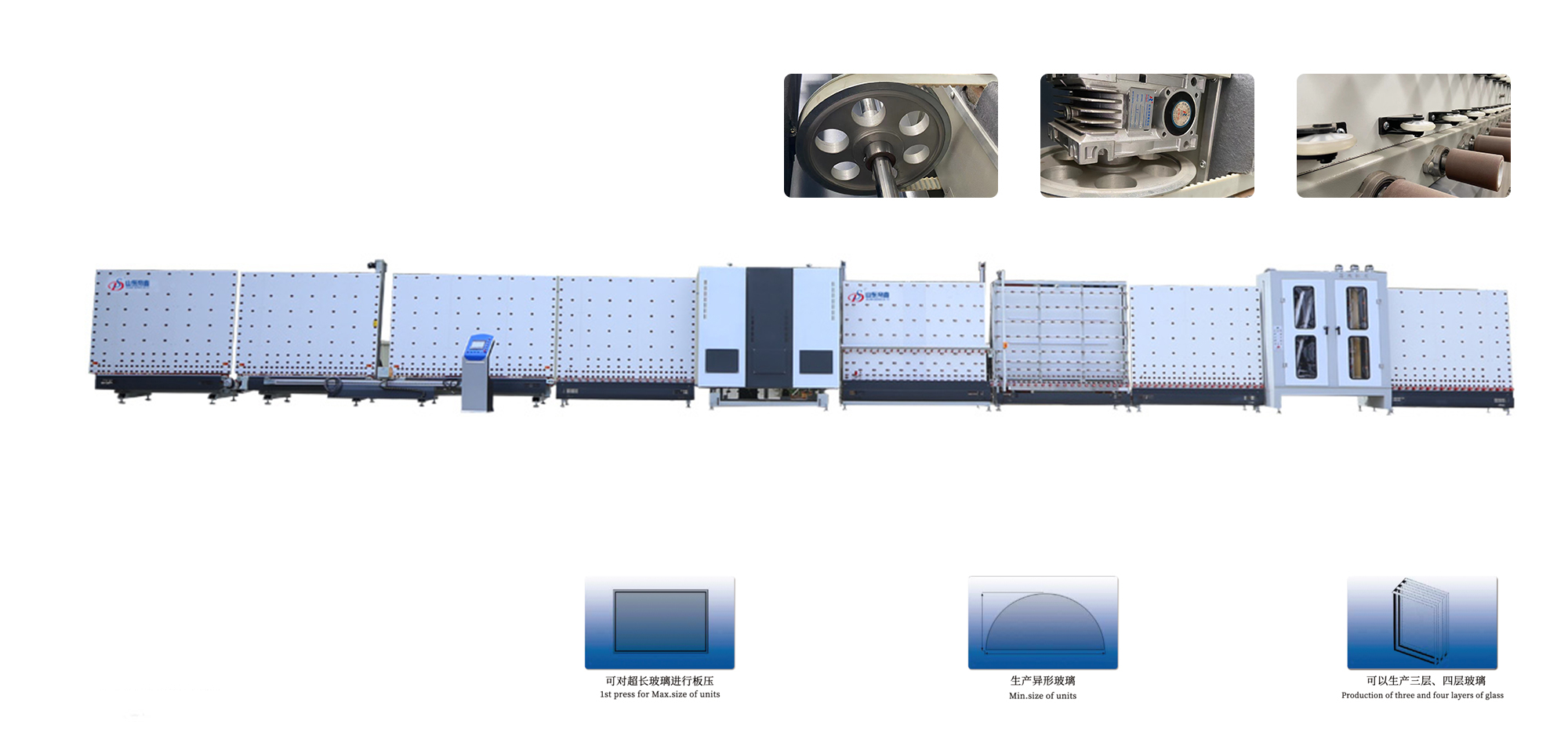

自動數控中空玻璃生產線(可生產LOW-E中空玻璃)
自動數控中空玻璃生產線(可生產LOW-E中空玻璃)
清洗機采用3對毛刷設計及對LOW-E玻璃專用毛刷避免膜損傷。
采用PLC控制及雙觸摸屏顯示系統一溫度/速度/生產量/故障信息提示-可單獨完成全線控制。
可以生產超長二層、三層、大小片(不等邊)幕墻中空玻璃及異型中空玻璃。
全距離自動變頻調速,設有玻璃等候儲存段,節省勞動等待時間,提高生產效率。
板壓機液壓控制,伺服電機調整.上下不等片尺寸.活動板可自由開啟.檢修方便快捷。
玻璃合片時平壓機前后箱機械手杠桿式托料,(機械式硬限位+活動板吸盤吸附)確保自動合片時玻璃永不錯位。
清洗箱.風干箱.風刀等全不銹鋼制作,外形美觀大方,永不銹蝕。
Automatic numerical control hollow glass production line (LOW-E hollow glass can be produced)Washing machine using 3 pairs of LOW-E special brush design and glass brush to avoid membrane damage .
Can produce over two layers and three layers, size (equilateral) hollow glass curtain wall and special-shapedhollow glass.
Full range automatic frequency control. with the glass waiting storage section, save |abor waiting time. improve production efficiency 。
Board press hydraulic control, servo motor to adjust up and down the size of the plate, the movable plate can be free to open. convenient and
quick maintenance.
Glass films flat press and box mechanical hand lever type material support, mechanical hard limit + activity in sucking) ensure automatic glass
films never dislocation.
The cleaning box. air drying box. air knife and other all stainless steel production, beautiful appearance. never rust,
